Collision avoidance lidar

958200003

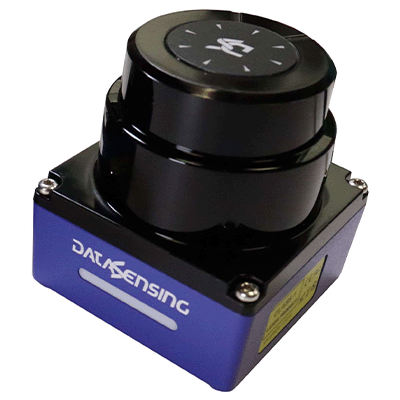

LGS-A10
Compact lidar for collision avoidance and 2D object detection

Overview

Compact, reliable and rugged Lidar for collision avoidance and for 2Dobject detection available also for outdoor applications. Very easy to install and use

Italian version at:
      https://www.youtube.com/watch?v=TlI6tf8nRsQ

ToF technology on infrared laser
2D Measurement data for natural navigation and for object profiling
360° measurement for all-round scanning
Very Compact design suitable also for smaller machines
High precision and reliable measurement up to 25 meters
Up to 225000 measured points per second
Up to 25 Hz selectable rotation frequency
0.25° angle resolution
Dimensions: 65 x 65 x 70 mm
10 m x 360° detection field
3 simultaneous detection outputs
Up to 16 zone sets
5 selectable detection capabilities
10 selectable response times
Output response time min = 80 ms

Technical Features

Detection properties

Nominal sensing distance	25 m (Measurement) ; 10 m (Object detection)
Minimum sensing distance (blind zone)	0.1 m
Measurement range @ 10% targe remission	10 m
Angular resolution	0.25° @10Hz / 0.5° @15Hz / 1° @25Hz

Application

Description	Compact lidar LGS-A10
Functions	AMR AGV Collsion avoidance - 2D object detection
Configuration and monitoring interface	LGS PRO

Outputs

Response time	80 ms min
Data Transmitted	angle - distance - signal strenght of each measuring point ; time stamp and more
Ethernet connection	M12 4 pins M Key D -- IEEE 802.3u 100Mbps Ethernet
Configurable Output max number	3 simoultaneous on M12 12 pins connector
